Flood Mitigation Systems for Homes and Commercial Properties

The right flood mitigation system starts with the property, not the product. A useful plan considers how water moves across the terrain, the building’s construction, local requirements and the depth or force of water the measures may need to withstand.

Measures work at three connected scales: the building itself, the parcel or neighbourhood, and public infrastructure. A barrier at one doorway may help with shallow water, for example, but it cannot replace drainage capacity, safe building design or wider protection where water can arrive quickly or with force.

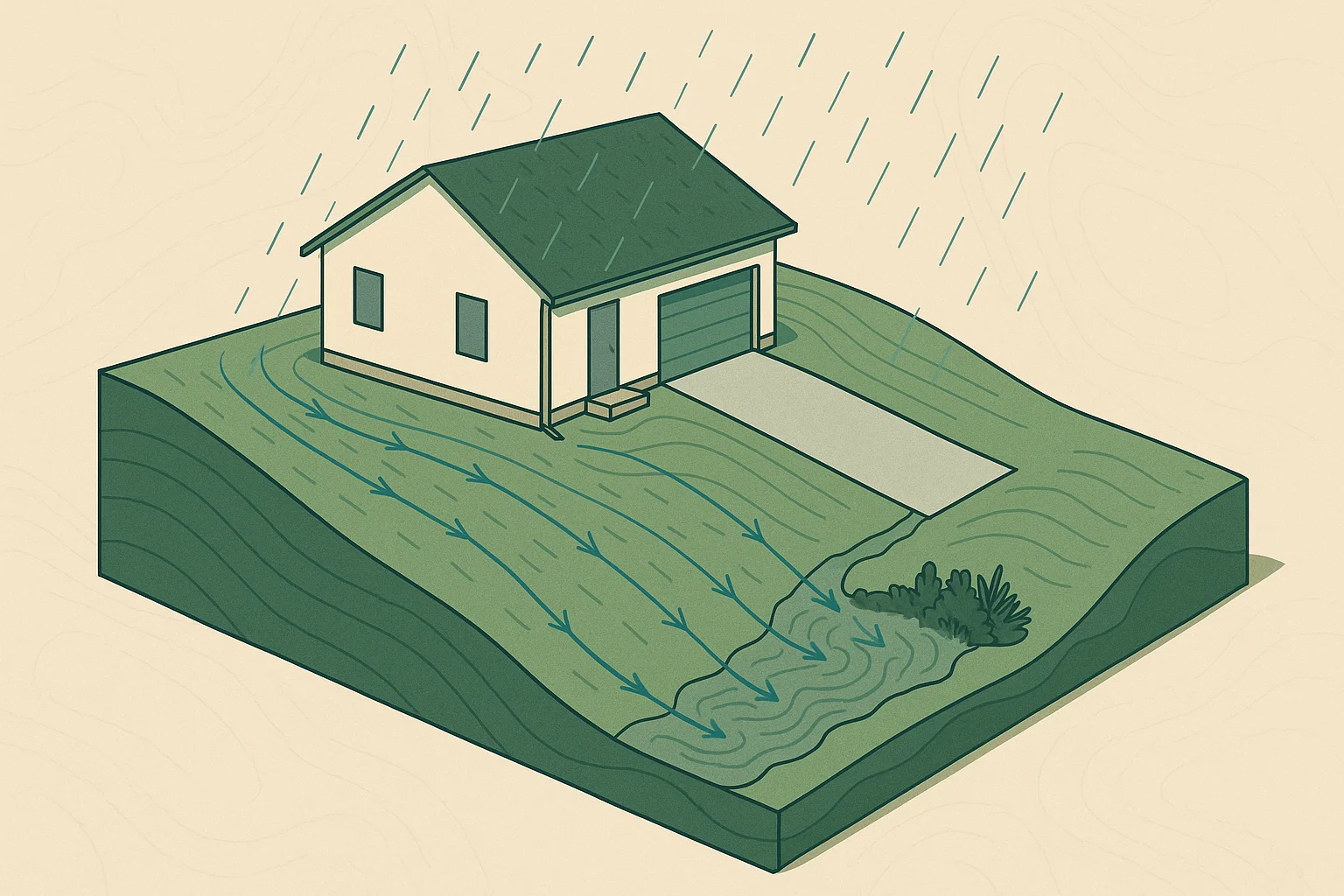

Before choosing a system, establish the property’s setting. Look at terrain, nearby drainage routes, low points, access routes and the relationship between the building floor and surrounding ground. Then assess the building: its use, foundations, enclosed lower areas, services, openings and materials.

A terrain-based flood susceptibility assessment can be a helpful early screen for homebuyers and property professionals. It helps identify site features worth investigating further. It does not replace a survey, engineering design, local code review or insurance advice.

For both homes and commercial properties, the central question is simple: should water be kept out, allowed through in a controlled way, redirected, stored, or managed by a combination of these approaches?

Elevation

Raising a building above expected water levels is often a durable approach where it is feasible. It can involve elevating the structure itself or designing a new building with the occupied floor higher above ground. The suitability depends on building type, site conditions and local requirements.

National regulatory analysis has estimated that an extra foot of elevation may add about 1.35% to building replacement cost. This is a planning reference, not a local quote: building type, method, labour, materials and contingency can change the outcome substantially.

Dry floodproofing

Dry floodproofing aims to make part of a building envelope watertight. Measures can include sealing walls and openings, using flood doors or shields, and protecting service penetrations. It is commonly more applicable to some non-residential buildings or non-habitable areas than to occupied residential space.

Its limits matter. Deep water, moving water and wave action can create structural and safety concerns, and local rules may restrict where dry floodproofing is accepted. National analysis estimated floodproofing up to four feet at about 5.95% of total building cost, but local estimates can differ widely.

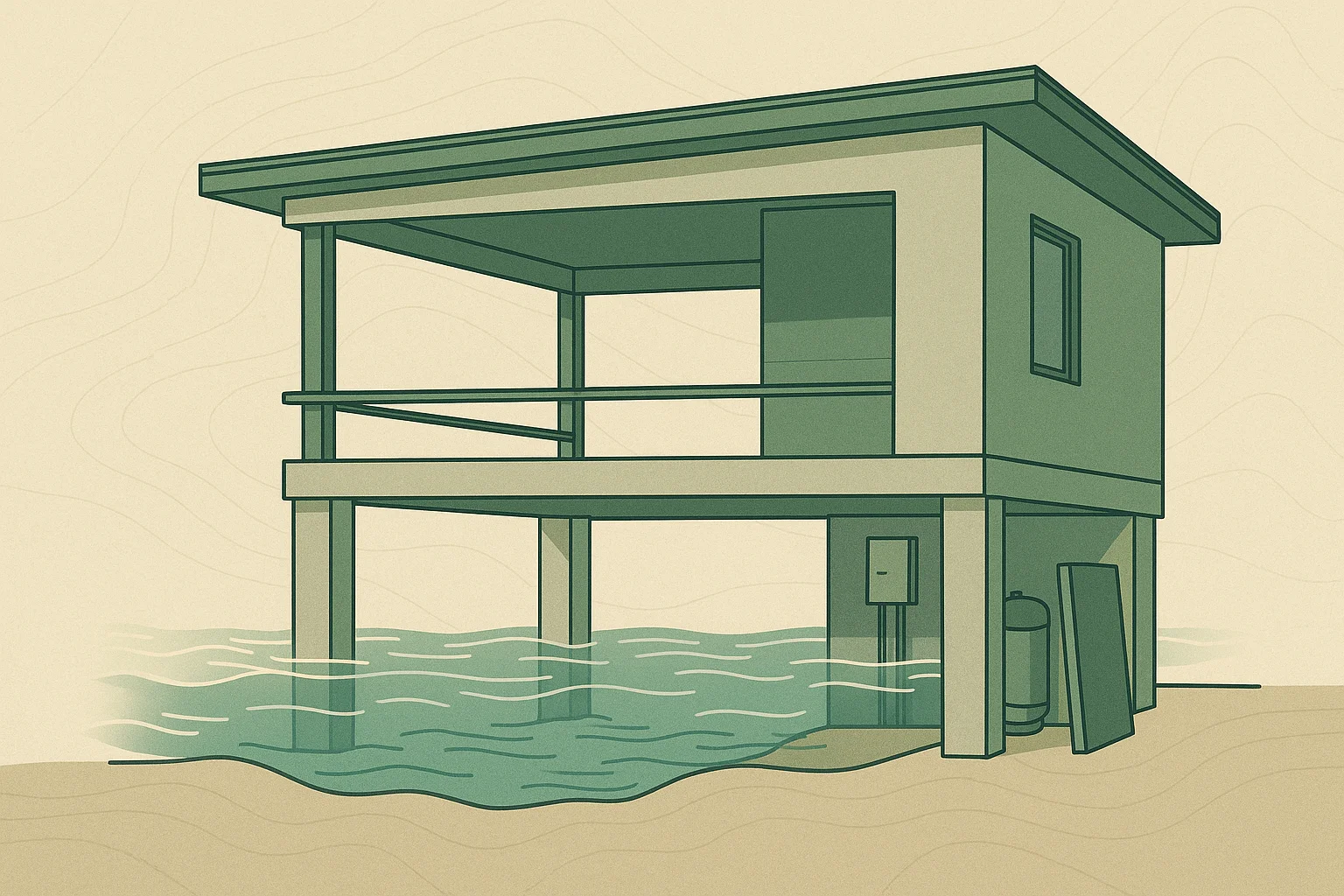

Wet floodproofing and flood openings

Wet floodproofing accepts that water may enter a designated lower area. It uses flood-damage-resistant materials, relocates or protects equipment where possible, and allows water to enter and leave so pressure does not build up against walls.

Flood openings are particularly important for certain enclosed areas below elevated buildings. Their design, location and number are governed by applicable requirements. They are not simply vents added after the fact.

Backflow prevention and temporary barriers

Backflow prevention can help stop water moving back through drainage and sewer connections. Temporary or portable barriers can be useful where there is time to install them and where the expected water conditions are within their design limits. They need storage, maintenance, an installation plan and a clear understanding of what they cannot handle.

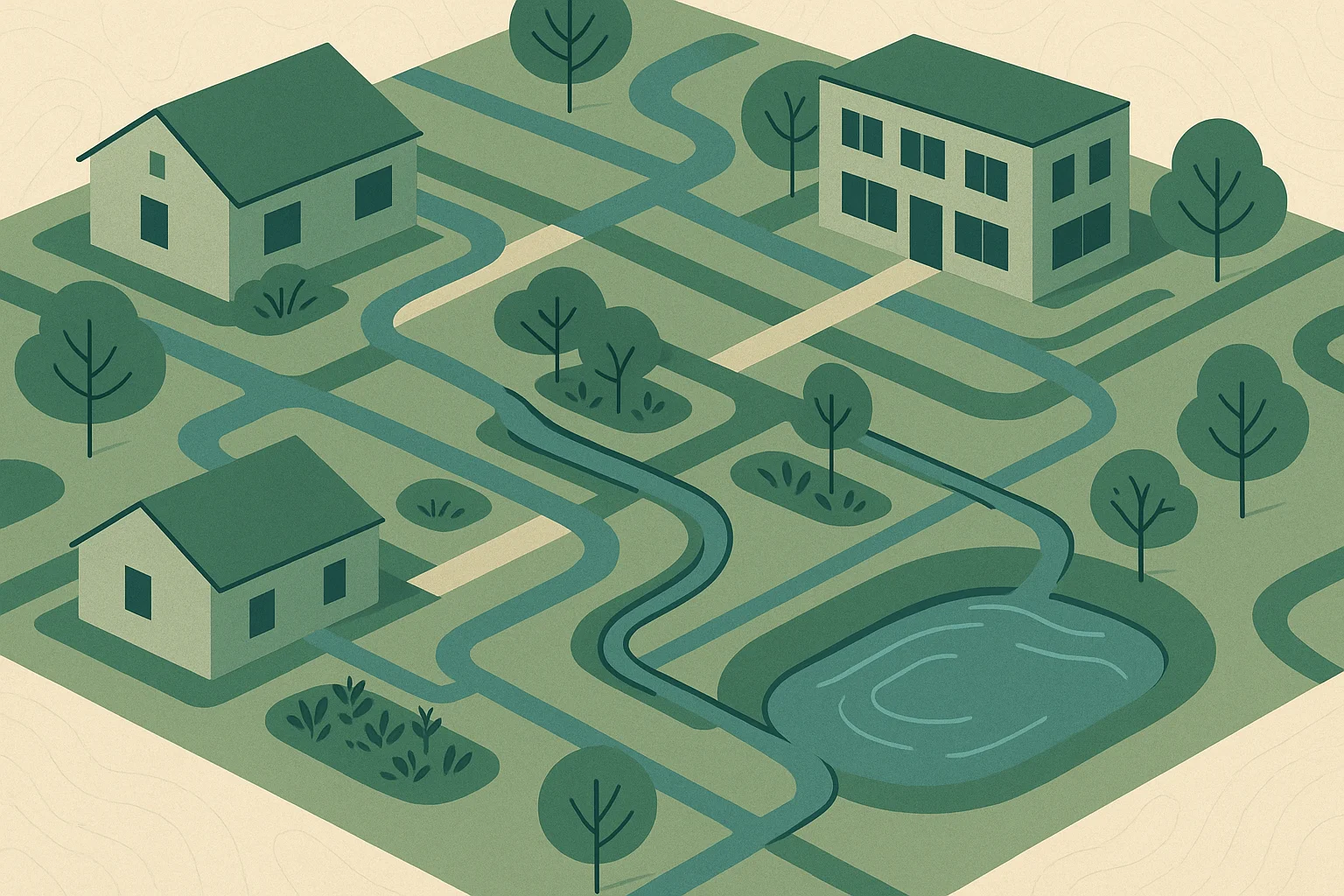

Many effective measures sit beyond the building line. Stormwater upgrades, retention or storage areas, green infrastructure and pump stations can reduce pressure on individual properties while improving how water is managed across a wider area.

These systems need coordinated design and long-term maintenance. A landscaped storage area, for example, only performs as intended if its drainage paths, inlets and outlets remain functional. Property owners should understand who owns and maintains any shared system.

For buyers and commercial property teams, this is also a due-diligence question. Ask what drainage and storage infrastructure serves the site, how it is maintained, and whether planned works depend on future approvals or funding.

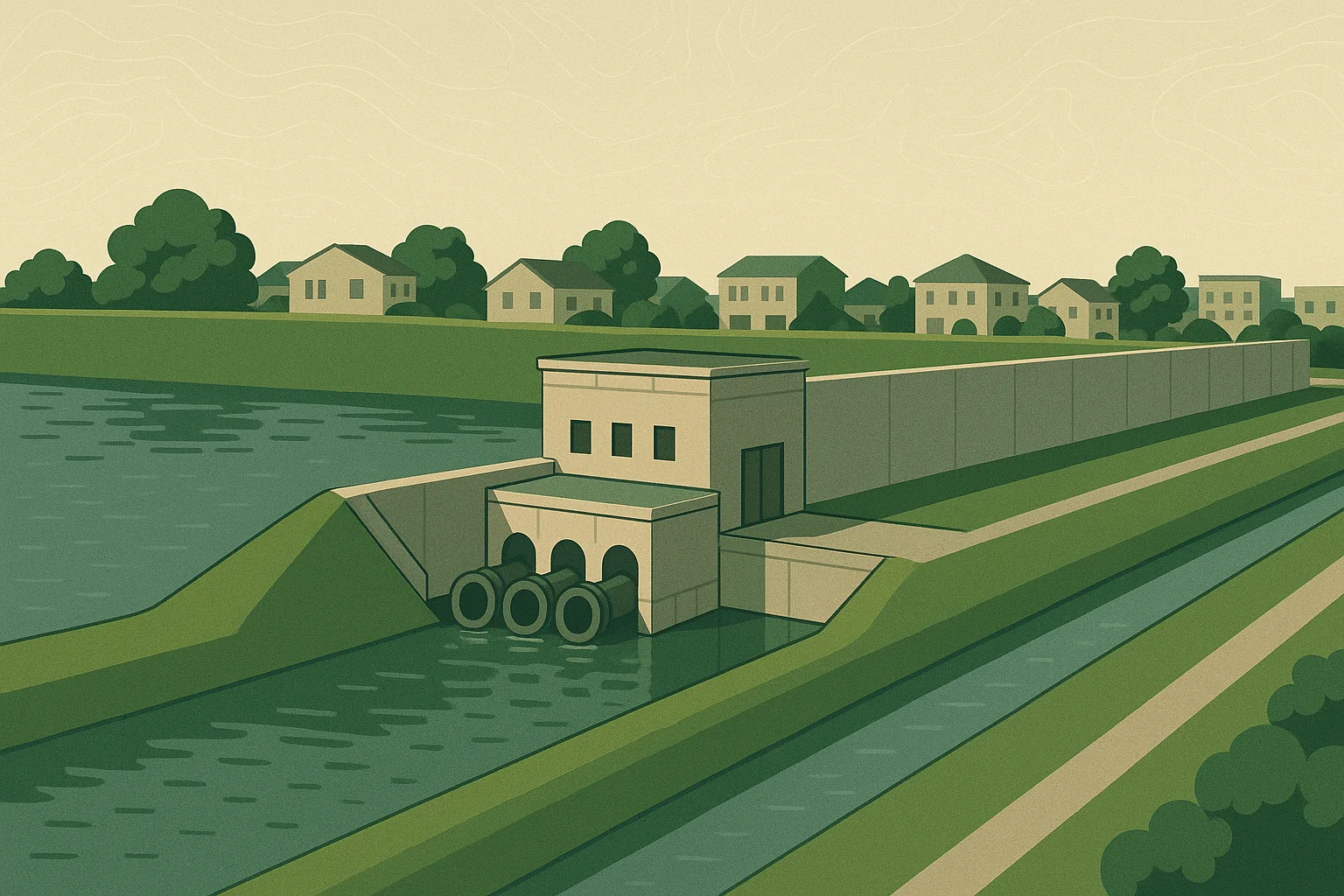

Levees, floodwalls, surge barriers and major pumping systems operate at a different scale. They can reduce exposure across large areas, but they do not make every protected property free from flood susceptibility. Water can exceed a system’s design conditions, find another route or cause problems if infrastructure fails.

The Greater New Orleans Hurricane and Storm Damage Risk Reduction System illustrates this scale. About US$14.5 billion was invested between 2007 and 2017 in levees, surge barriers, pumps and related work. Its Inner Harbor Navigation Canal and Lake Borgne Surge Barrier cost about US$1.1 billion and was completed around 2013.

Managed retreat and voluntary buyouts are another area-wide response. New Jersey’s Blue Acres programme has historically acquired about 1,300 properties. Buyouts can remove buildings from susceptible locations, but outcomes for communities and future land use vary.

Commercial buildings may have loading areas, larger service equipment, storage and operational continuity needs. Dry floodproofing may be considered in circumstances where it is allowed and structurally suitable. The design must account for the force of water on walls, doors and openings, as well as the consequences of interrupted access or utilities.

Homes often depend more heavily on elevation, compliant flood openings, wet floodproofing of suitable lower areas, resilient materials, raised equipment and backflow prevention. A measure that protects a garage or enclosure may not be appropriate for occupied living space.

In either case, local adoption and enforcement of building standards determines what is required. Requirements can exceed minimum national insurance-programme rules, particularly in coastal areas. Confirm what is permitted, required and insurable before committing to a design.

1. Screen the site. Review terrain-based flood susceptibility alongside drainage, access and the building’s position on the parcel.
2. Inspect the building. Identify low openings, lower enclosures, utilities, vulnerable materials and routes for water entry.
3. Check the rules. Confirm local code, floodplain, planning and insurance requirements before selecting a measure.
4. Match the measure to the conditions. Consider water depth, duration, velocity, waves and whether there is enough warning time for deployable systems.
5. Get local costs. National percentage estimates are only a starting point. Seek site-specific design and contractor pricing, including maintenance and contingency.
6. Plan for upkeep. Barriers, drains, pumps, valves and openings only help when they are accessible, maintained and used correctly.

Funding may be available through mitigation grant programmes, though funding cycles and award decisions change and many programmes require a non-federal contribution. Check the current programme terms and local pathways before relying on a grant in a project budget.

The strongest mitigation plans are layered. They combine sensible site selection, building-level measures, well-maintained drainage and realistic expectations about the limits of every system.
